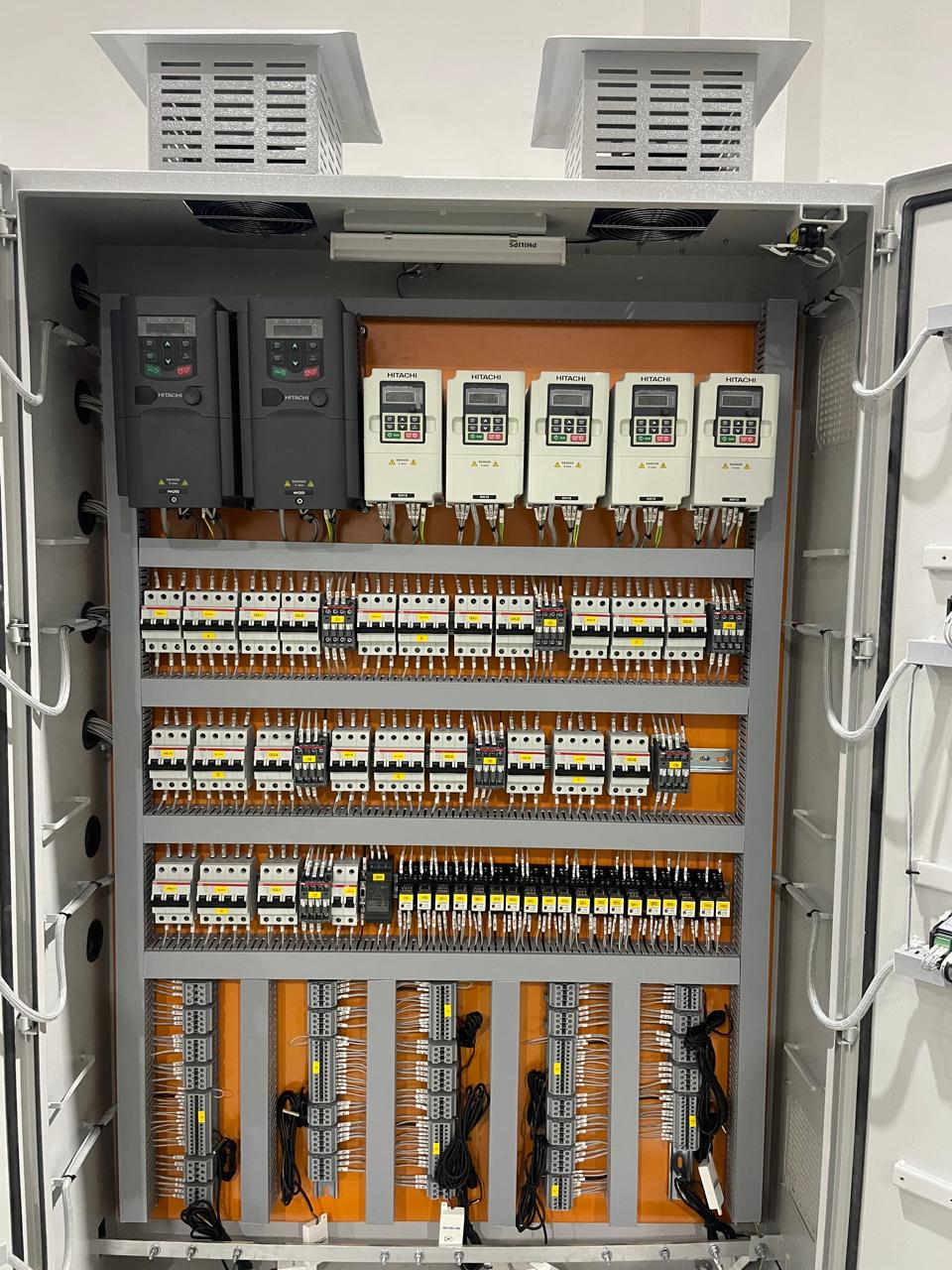

VFD Based Control Panel
Description
VFD Based Control Panel Manufacturer
OPTIMIZE YOUR INDUSTRIAL OPERATIONS WITH HIGH PERFORMANCE MOTOR CONTROL SOLUTIONS. OUR VFD VARIABLE FREQUENCY DRIVE CONTROL PANELS ARE ENGINEERED TO PROVIDE PRECISE SPEED REGULATION, SIGNIFICANT ENERGY SAVINGS, AND ENHANCED OPERATIONAL EFFICIENCY FOR ELECTRIC MOTORS AND FEED PUMPS.
THE VFD BASED CONTROL PANEL BY OLAR ELECTRICAL IS A ROBUST SYSTEM DESIGNED FOR DEMANDING INDUSTRIAL APPLICATIONS SUCH AS DRILLING, PUMPING, AND CONVEYOR SYSTEMS. BY ADJUSTING THE FREQUENCY AND VOLTAGE SUPPLIED TO THE MOTOR, OUR PANELS REDUCE MECHANICAL STRESS AND POWER CONSUMPTION, ENSURING A LONGER LIFESPAN FOR YOUR EQUIPMENT.
TECHNICAL SPECIFICATIONS AND DESIGN FEATURES
PRE TREATMENT AND FINISHING
OUR PANELS UNDERGO A RIGOROUS THREE TANK OR SEVEN TANK PRE TREATMENT PROCESS TO ENSURE MAXIMUM CORROSION RESISTANCE.
FINAL PAINT SHADE PER IS OR CLIENT SPECIFICATIONS.
AVAILABLE IN SYNTHETIC ENAMEL, EPOXY BASED PRIMER, OR POWDER COATING.
BUS BAR ARRANGEMENT
CONSTRUCTED WITH ELECTRICAL GRADE ALUMINUM OR COPPER BUSBARS.
MAIN BUSBAR CHAMBERS POSITIONED AT TOP OR BOTTOM FOR FLEXIBILITY.
BUSBAR SUPPORTS MADE FROM HIGH QUALITY SMC OR DMC MATERIAL.
DESIGNED BASED ON CONTINUOUS CURRENT RATING AND FAULT LEVEL WITHSTAND CAPACITY.
CABLE MANAGEMENT
SEPARATE CHAMBERS FOR VERTICAL DROPPERS.
TOP OR BOTTOM CABLE ENTRY WITH DETACHABLE GLAND PLATES FOR EASY INSTALLATION.
ASSEMBLY AND WIRING
INTERNAL WIRING UTILIZES 660V OR 1100V GRADE PVC COATED STRANDED COPPER FLEXIBLE WIRES.
CRIMPING LUGS ARE USED FOR ALL INTERNAL CONNECTIONS AND TERMINATIONS TO ENSURE RELIABILITY.
COMPONENTS ARE SELECTED EXCLUSIVELY FROM APPROVED AND REPUTED VENDORS.
QUALITY ASSURANCE
EVERY PANEL MANUFACTURED BY OLAR ELECTRICAL UNDERGOES A STRINGENT INSPECTION PROCESS:
FABRICATION STRUCTURE VERIFIED FOR DIMENSIONS AGAINST APPROVED G.A. DRAWINGS.
DETAILED INSPECTION OF PAINTING AND POWDER COATING QUALITY.
COMPLIANCE WITH IS 8623 STANDARDS FOR TEMPERATURE RISE AND SAFETY.
APPLICATIONS
PUMPING AND WATER TREATMENT
DRILLING AND HEAVY MACHINERY
CONVEYOR SYSTEMS
HVAC SYSTEMS
INDUSTRIAL AUTOMATION LINES
